We have an extensive range of high-quality oil tanks from small 650L slim tanks to large 2500L tanks. We use reputable brands such as Kingspan, Carbery and Harlequin in all shapes and sizes, either single-skin or bunded construction to suit your space.

Our technicians are all OFTEC trained and insured and will work with you to find the best tank solution for your needs. Delivery and installation will be completed to the highest of standards complying with local authority guidelines and on completion you will receive an OFTEC TI/133D Domestic Oil Storage Tank Spillage and Fire Assessment Form.

Our tank installation service can include:

• supply new tank 650L to 2500L capacity
• excavate garden for base foundation
• build wall / pour concrete base
• supply concrete lintels when required
• supply new oil line & fittings / connect to new tank
• fit a measuring gauge & lock as required
• supply a water gripper when requested
• fill the tank with fuel as required
• bleed any air from line & boiler
• get the boiler running & heat working

650 LITRE CARBERY RECTANGULAR SINGLE SKIN OIL TANK - STGR0650R

Specifications:

• Length: 1083mm

• Width: 670mm

• Height: 1174mm

• Weight: 35Kg

• Nominal Capacity: 611 Litres

• Brimful Capacity: 643 Litres

• Outlet Diameter: 25.4mm (1") BSP

• Outlet Position: Bottom



900 LITRE CARBERY RECTANGULAR SINGLE SKIN OIL TANK - STGR0900R

Specifications:

1150 LITRE CARBERY HORIZONTAL SINGLE SKIN OIL TANK - STGR1150H

Specifications

• Length: 1720mm

• Width: 1060mm

• Height: 1020mm

• Weight: 46Kg

• Nominal Capacity: 1125 Litres

• Brimful Capacity: 1184 Litres

• Outlet Diameter: 25.4mm (1") BSP

• Outlet Position: Bottom



1550 LITRE CARBERY HORIZONTAL SINGLE SKIN OIL TANK - STGR1550H

Specifications

• Length: 1810mm

• Width: 1240mm

• Height: 1220mm

• Weight: 66Kg

• Nominal Capacity: 1476 Litres

• Brimful Capacity: 1554 Litres

• Outlet Diameter: 25.4mm (1") BSP

• Outlet Position: Bottom



650 LITRE HARLEQUIN SLIMLINE BUNDED OIL TANK - 650ITE

Specifications

• Length:  1715mm

• Width:    670mm

• Height:  1330mm

• Weight:  116kg

• Brimful Capacity:  673 Litres



1000 LITRE HARLEQUIN SLIMLINE BUNDED OIL TANK -1000ITE

Specifications

• Length:  2150mm

• Width:   690mm

• Height:  1420mm

• Weight:  132kg

• Brimful Capacity:  1055 Litres



900 LITRE KINGSPAN TITAN SINGLE SKIN RECTANGULAR OIL TANK - R900

Specifications

• Length:  1505mm

• Width:   695mm

• Height:  1200mm

• Capacity:  900 Litres



1000 LITRE KINGSPAN TITAN SINGLE SKIN RECTANGULAR OIL TANK - R1000

Specifications

• Length:  1880mm

• Width:   590mm

• Height:  1400mm

• Capacity:  1000 Litres

1200 LITRE KINGSPAN TITAN SINGLE SKIN RECTANGULAR OIL TANK - R1200

Specifications

• Length:  1820mm

• Width:   720mm

• Height:  1220mm

• Capacity:  1200 Litres

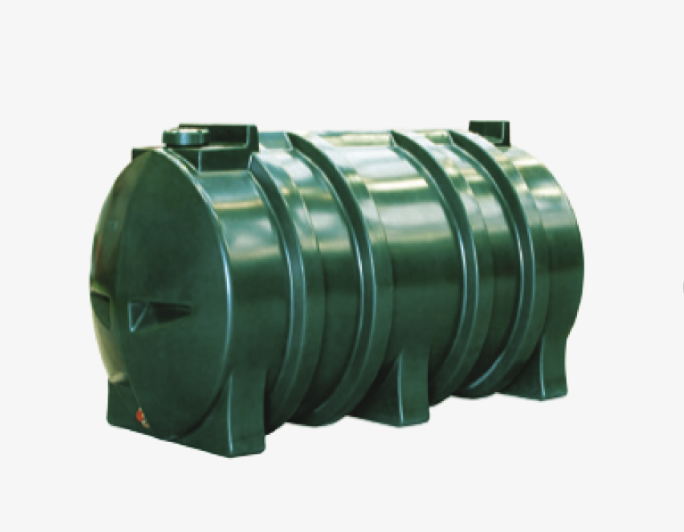

1100 LITRE KINGSPAN TITAN SINGLE SKIN HORIZONTAL OIL TANK - H1100

Specifications

• Length:  1945mm

• Width:   950mm

• Height:  1065mm

• Capacity:  1100 Litres



1200 KINGSPAN TITAN SINGLE SKIN LOW PROFILE OIL TANK - LP1200ROI

Specifications

• Length:  2000mm

• Width:   870mm

• Height:  1145mm

• Capacity:  1200 Litres



1300 LITRE KINGSPAN TITAN SINGLE SKIN VERTICAL OIL TANK - V1300

Specifications

• Diameter: 1200mm

• Height:  1415mm

• Capacity:  1300 Litres



1360 LITRE KINGSPAN TITAN SINGLE SKIN HORIZONTAL OIL TANK - H1360

Specifications

• Length:  1950mm

• Width:   1080mm

• Height:  1080mm

• Capacity:  1360 Litres



1400 LITRE KINGSPAN TITAN ECOSAFE SLIMLINE BUNDED OIL TANK - ESSL1400

Specifications

• Length:  2200mm

• Width:   650mm

• Height:  1680mm

• Capacity:  1400 Litres



2500 LITRE KINGSPAN TITAN SINGLE SKIN HORIZONTAL OIL TANK - H2500

Specifications

• Length:  2265mm

• Width:   1250mm

• Height:  1320mm

• Capacity:  2500 Litres



Call Pat on 087-2364500 or request a callback.
